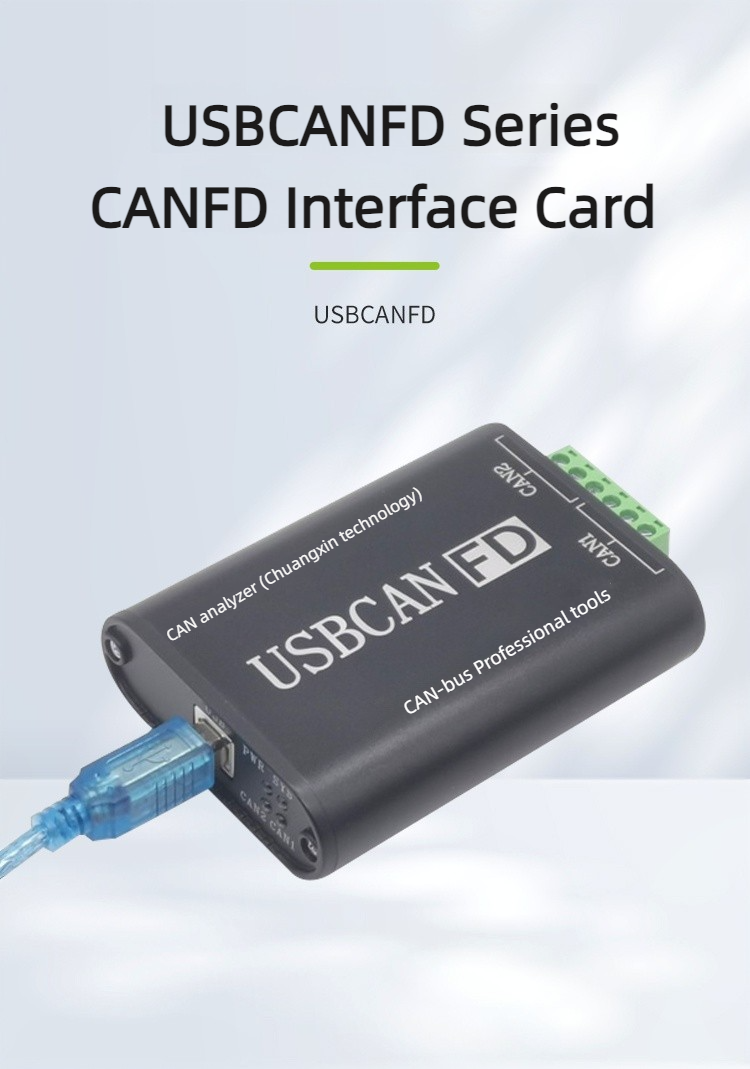

| Specifications and Models | USBCANFD | USBCANFD(Linux版) |

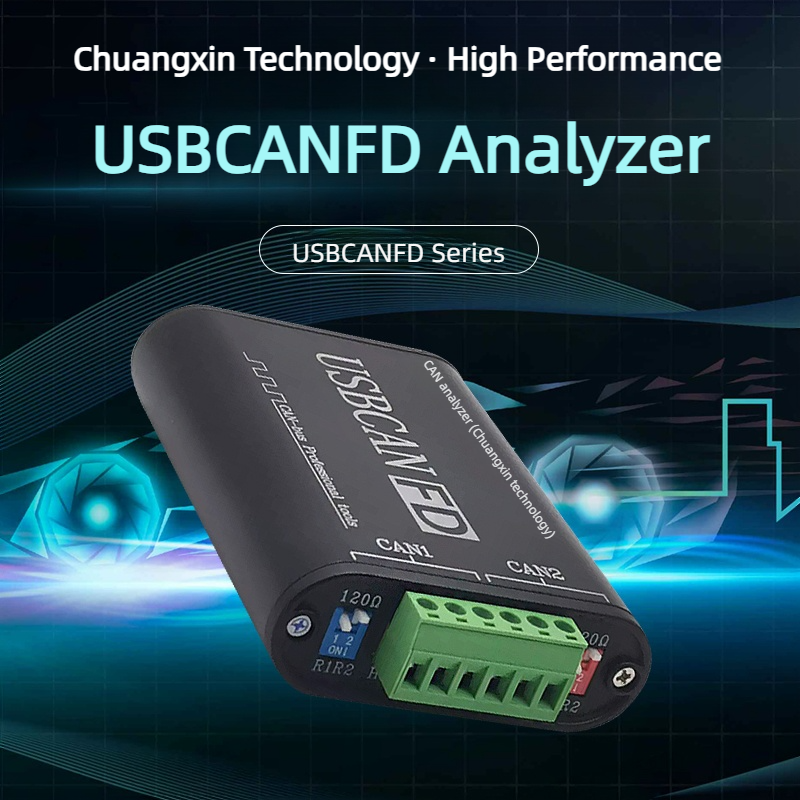

| Actual product image | | |

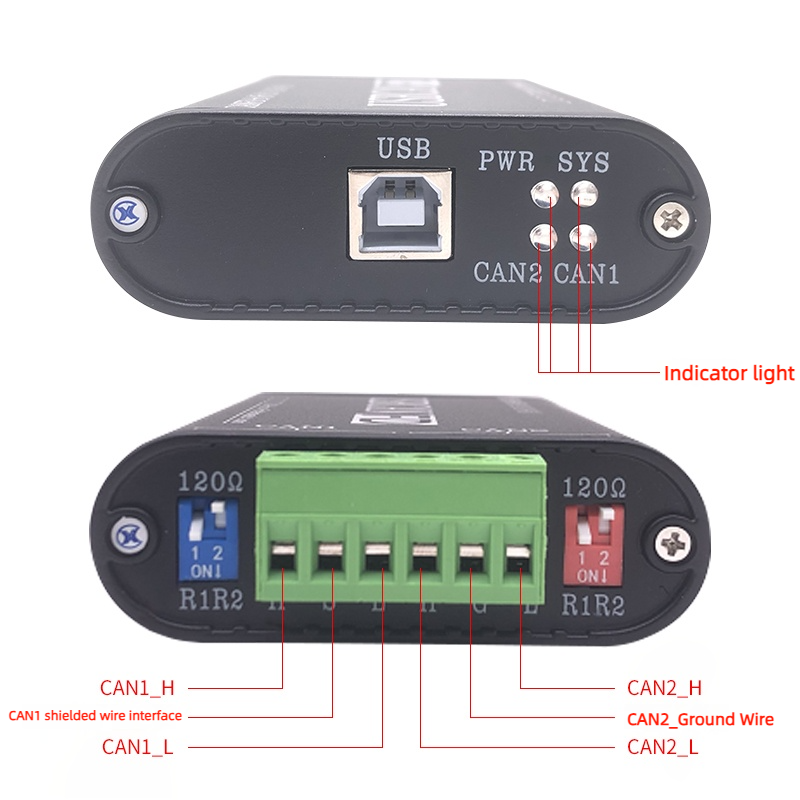

| CAN/CANFD | CANFD*2-channel (CAN-enabled) | CANFD*2-channel (CAN-enabled) |

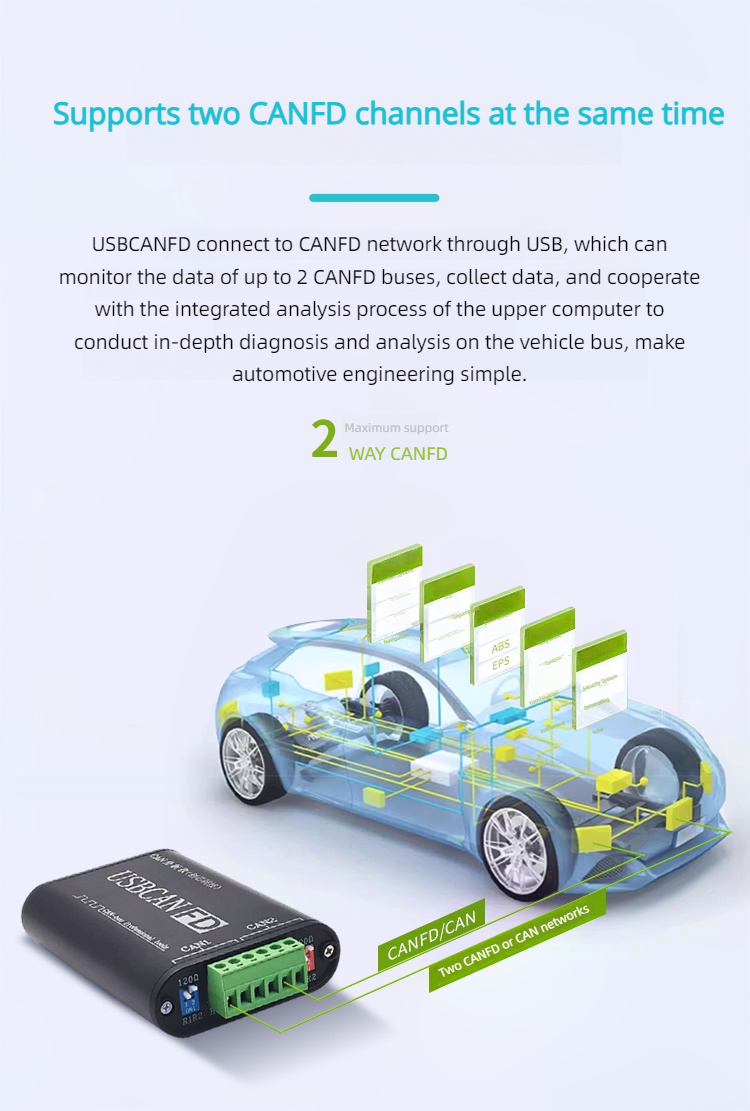

| Number of CAN channels | 2-channel high-speed CANFD | 2-channel high-speed CANFD |
| Quarantine | The three ports between the USB and the two CANFD interfaces are each isolated. | The three ports between the USB and the two CANFD interfaces are each isolated from one another. |

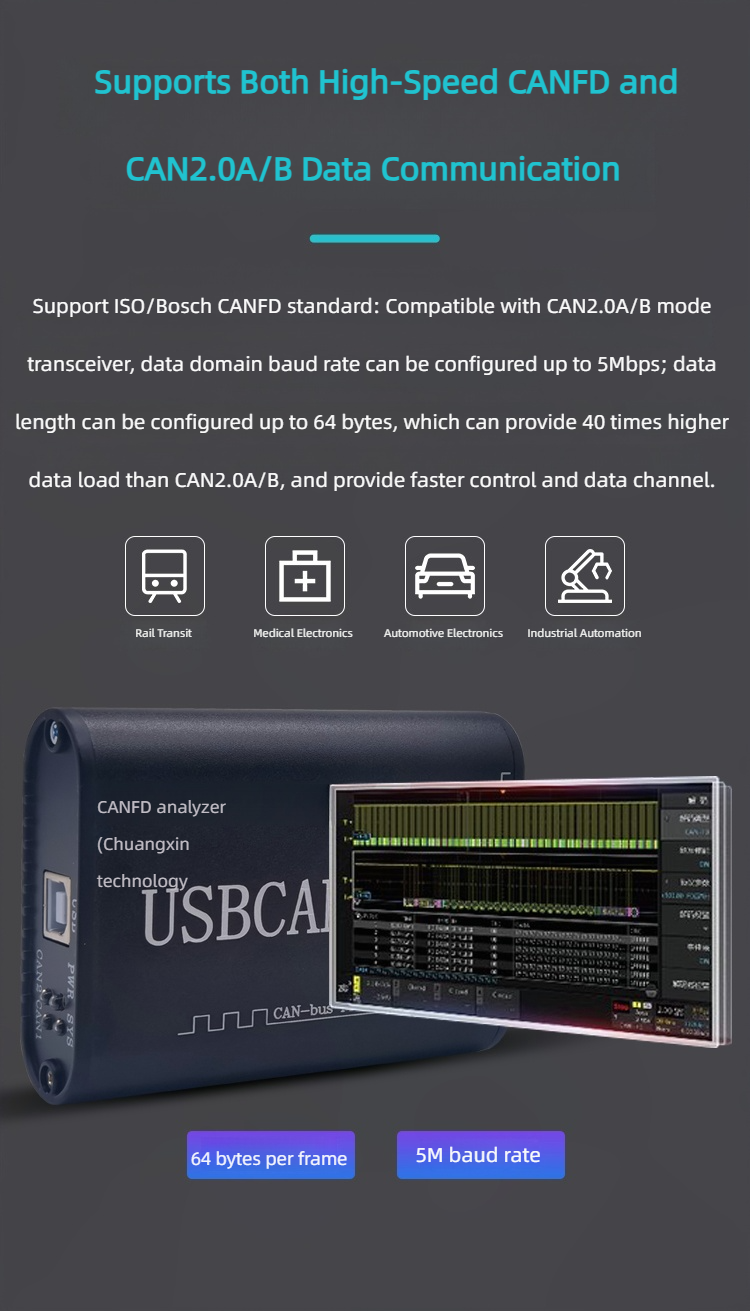

| Baud rate range | 10K-5Mbps | 10K-5Mbps |

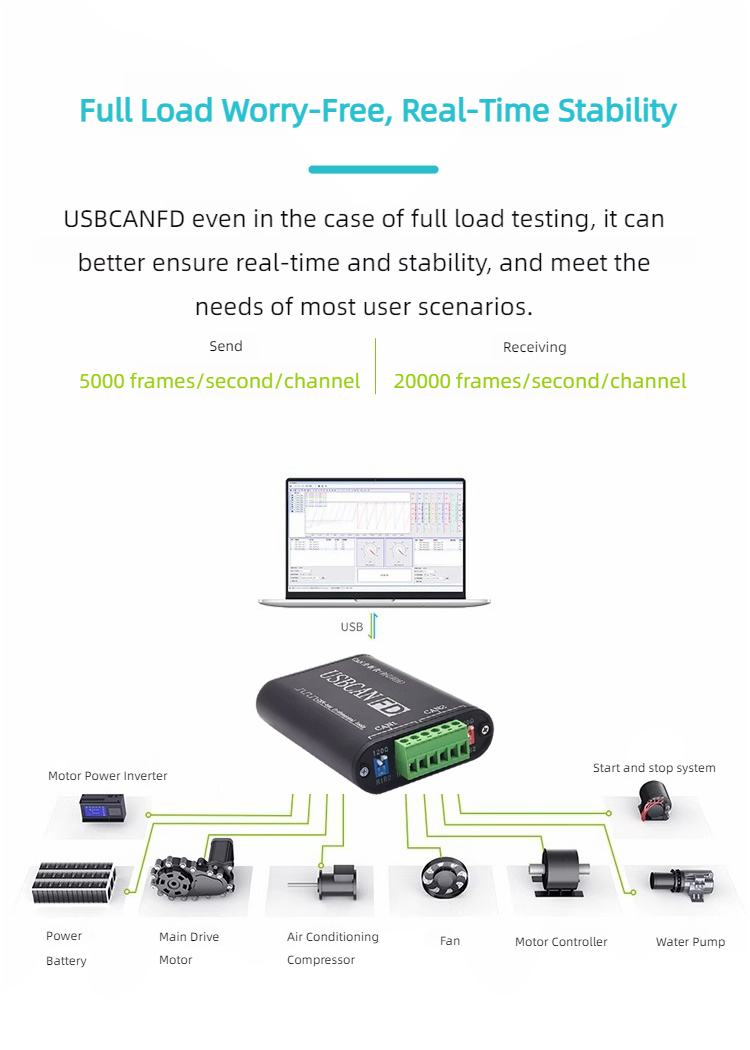

| Data reception capability | No frame loss under 5M baud rate with 2 channels at full load | No frame loss under 5M baud rate with 2 channels at full load |
| Power Supply Method | Powered directly from the USB bus, no external power supply required. | Powered directly from the USB bus, no external power supply required. |

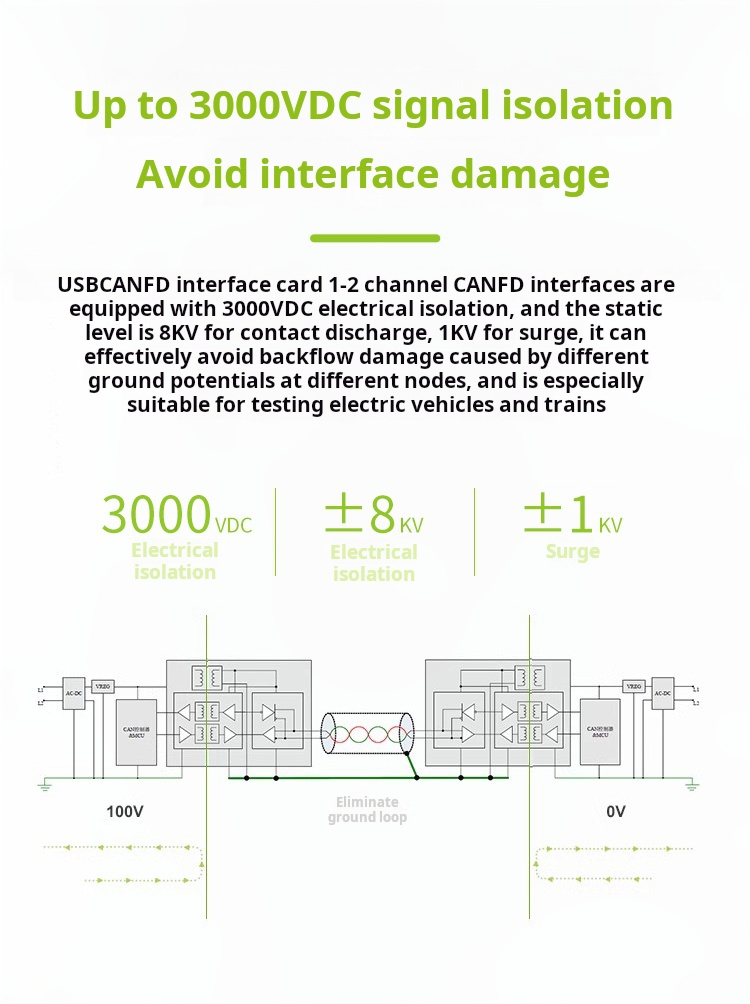

| Isolation Voltage Rating | 3000V | 3000V |
| Support System | Window | Windows、Linux |
| In-vehicle DBC Protocol | Host computer enable | Host computer enable |

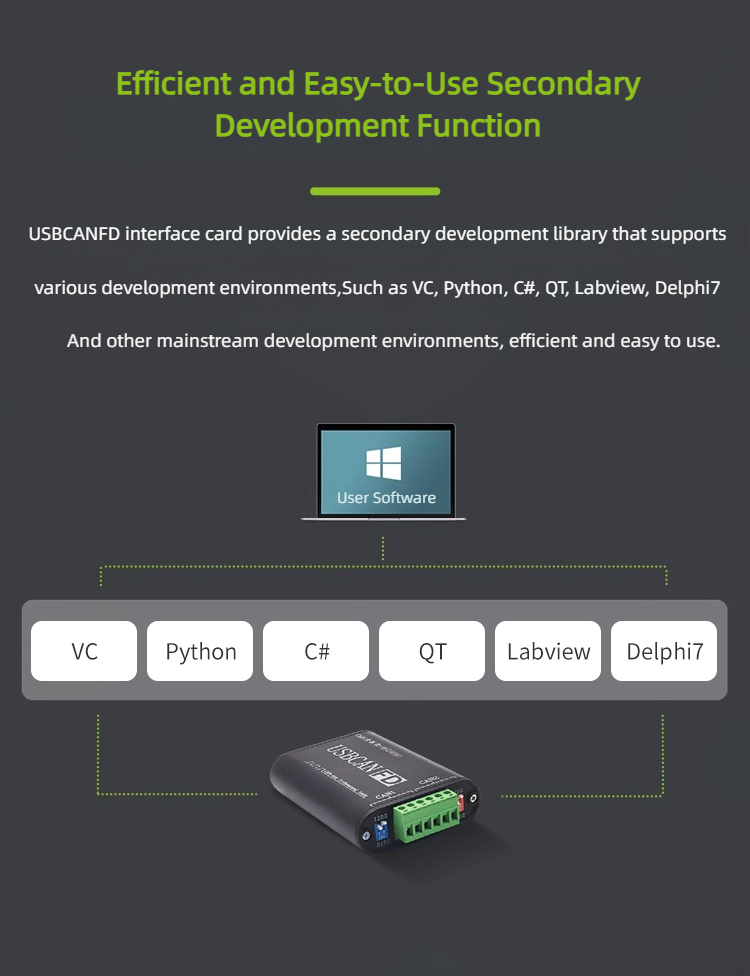

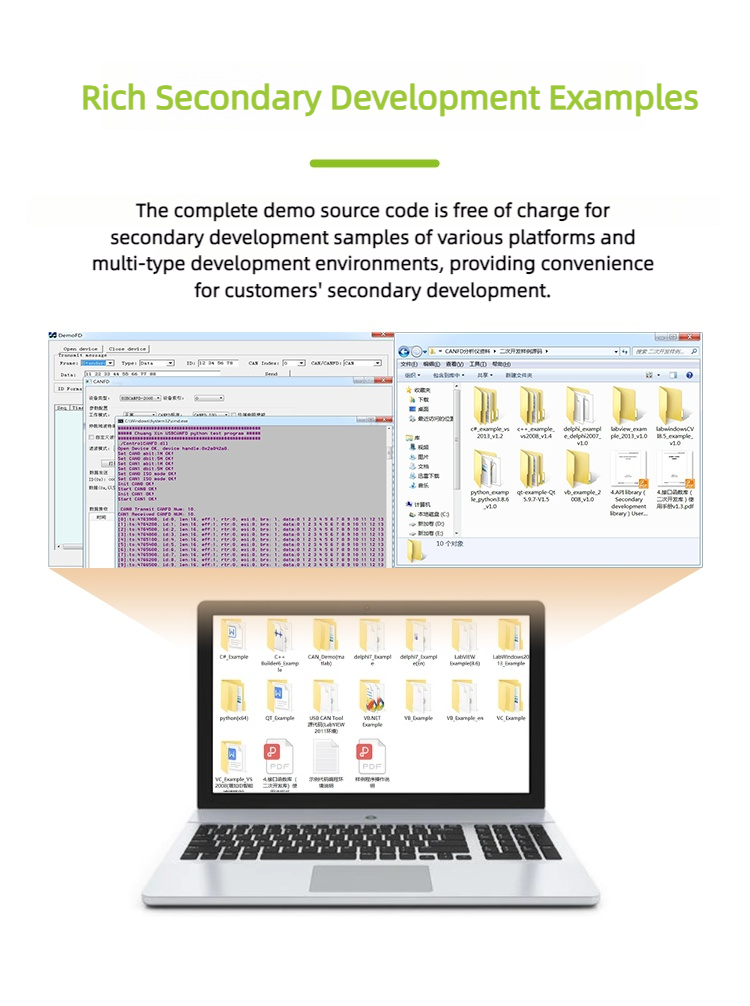

| Secondary development | Support | Support |
| Operating Temperature | -40~85℃ | -40~85℃ |
| Housing Material | Aluminum alloy metal body | Aluminum alloy metal body |
| Product Dimensions | 180*156*41mm | 180*156*41mm |
