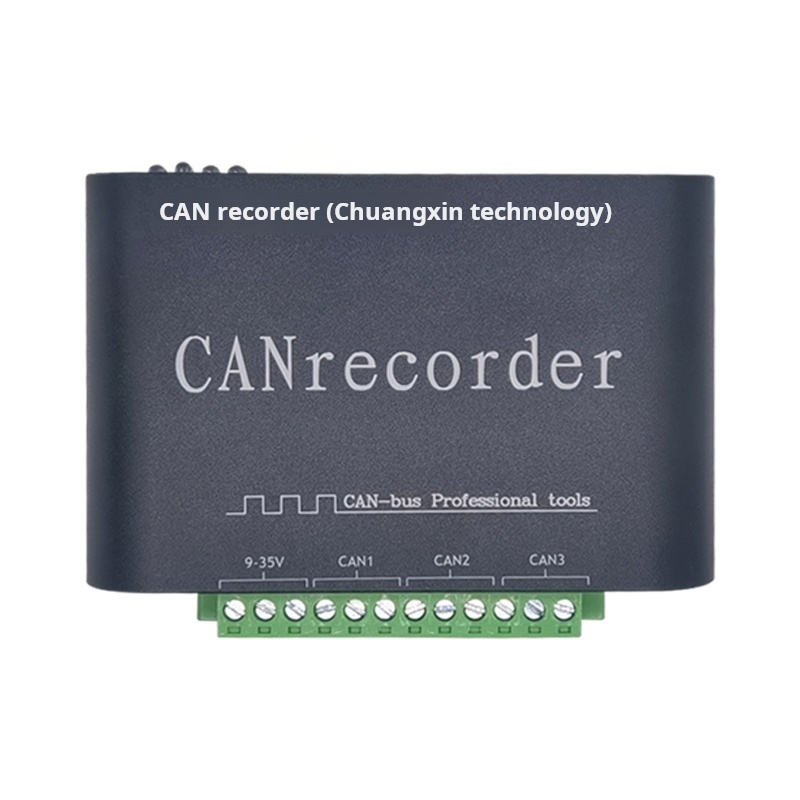

I. Power Supply

    1. Battery Powered: Built-in 2500mAh high-capacity battery, can run for 15 hours without power supply.

     2. USB Powered: 5V power supply through USB cable, can be connected to mobile phone charger/computer.

     3. DC Power Supply: 9V-35V wide range power supply, 0.5A.

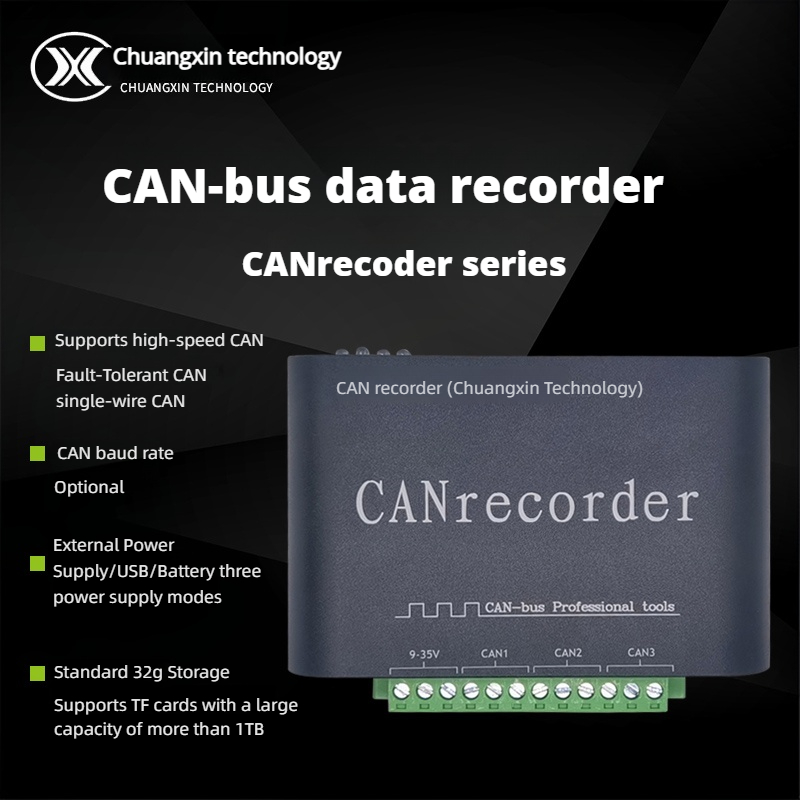

II. Main Function

1. Offline Recording: All CAN bus data can be recorded without the need for a computer connection.

2. TF Card Storage: Standard 32G SanDisk class 10 high-speed TF card, can store 350 million frames of CAN data.

3. TF card storage capacity limit: no limit, can be optional. Measured 512G can store 5.6 billion frames of CAN data.

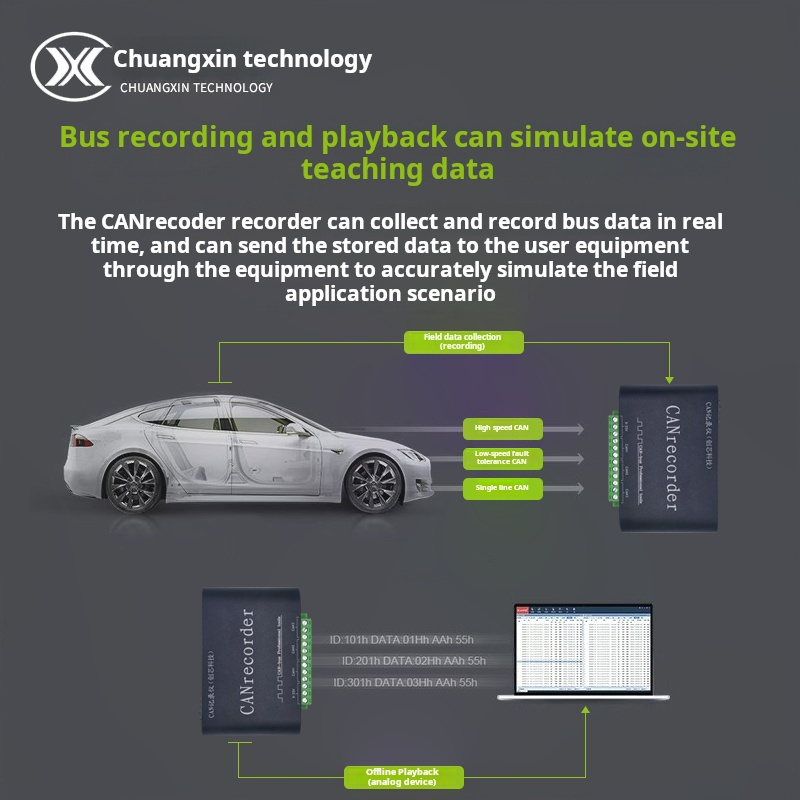

4. Offline Playback: you can save the data, directly sent back to the CAN bus as is, simulating the device signal.

5. Offline Relay: between CAN1 and CAN2, can be intelligent relay, direct forwarding, or rewriting forwarding.

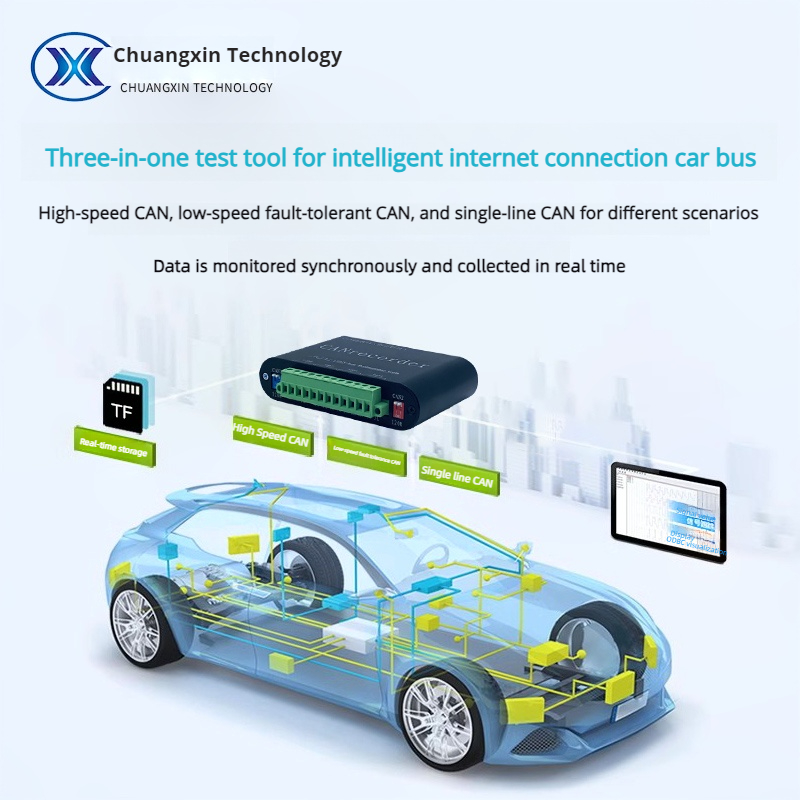

6. All kinds of CAN lines: support for high-speed / low-speed / fault-tolerant / single-wire CAN / comfort / entertainment CAN lines.

7. Built-in Clock: You can save the received Beijing time for each frame of data.

8. Data Saving Format: txt, csv, asc, CAN.

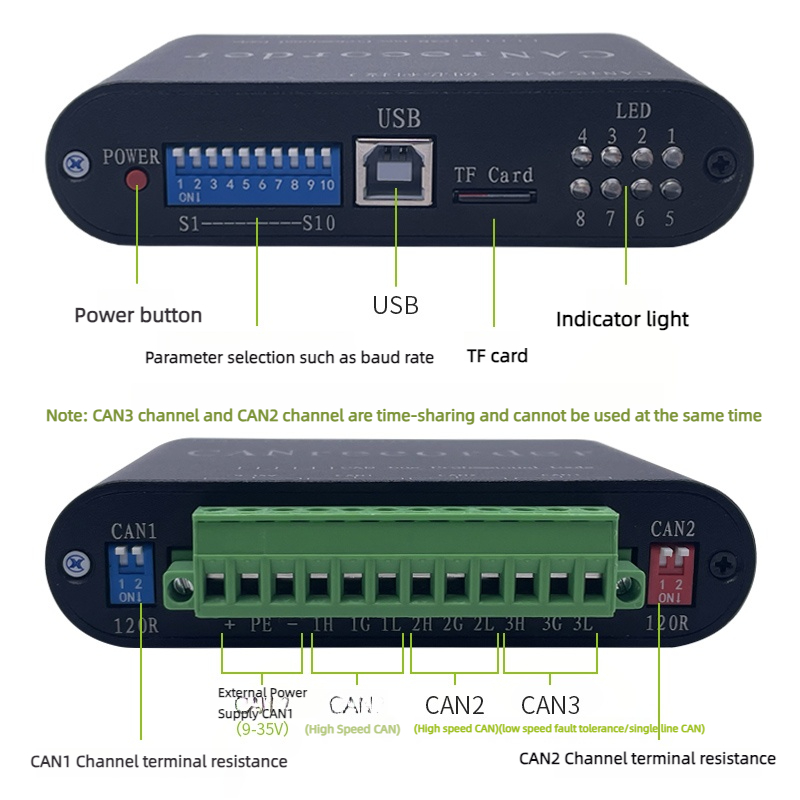

III. Interfaces

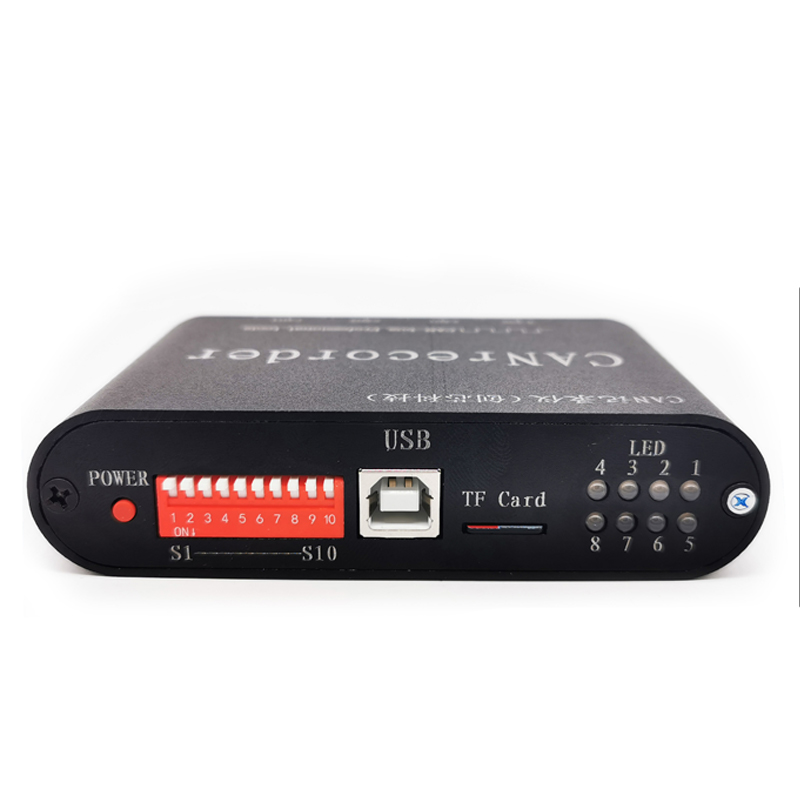

1. POWER：Power switch, mainly for battery power supply.

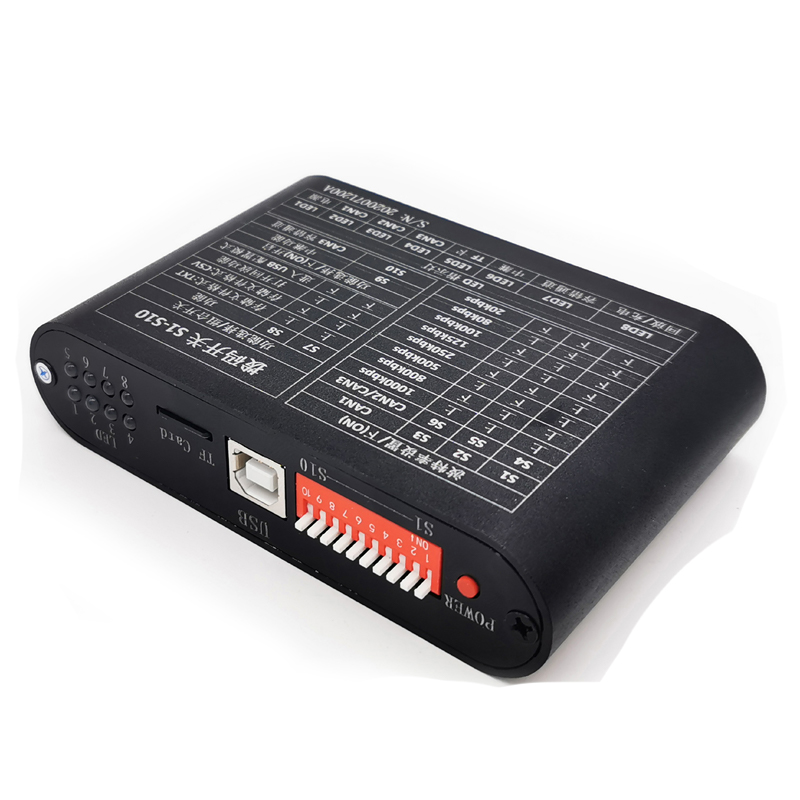

2. S1-S10：Baud rate and function selection switch.

3. USB：Configure Beijing time/copy TF card data through PC (USB port can not read CAN data in real time).

4. TF Card: standard TF card.

5. LED1-8：LED indicator.

6. +PE-：Switching power input.

7. 1H/1G/1L：CAN1 channel, high-speed CAN, baud rate 10k-1M.

8. 2H/2G/2L：CAN2 channel, high-speed CAN, baud rate 10k-1M.

9. 3H/3G/3L：CAN3 channel, low-speed fault-tolerant CAN, baud rate 10k-125K (Note: CAN3 is the extension of CAN2, CAN2 is not available when CAN3 is enabled).

10. CAN1 120R：CAN1 channel terminal resistance selector switch.

11. CAN2 120R: CAN2 channel terminal resistance selector switch.
