Product Detail

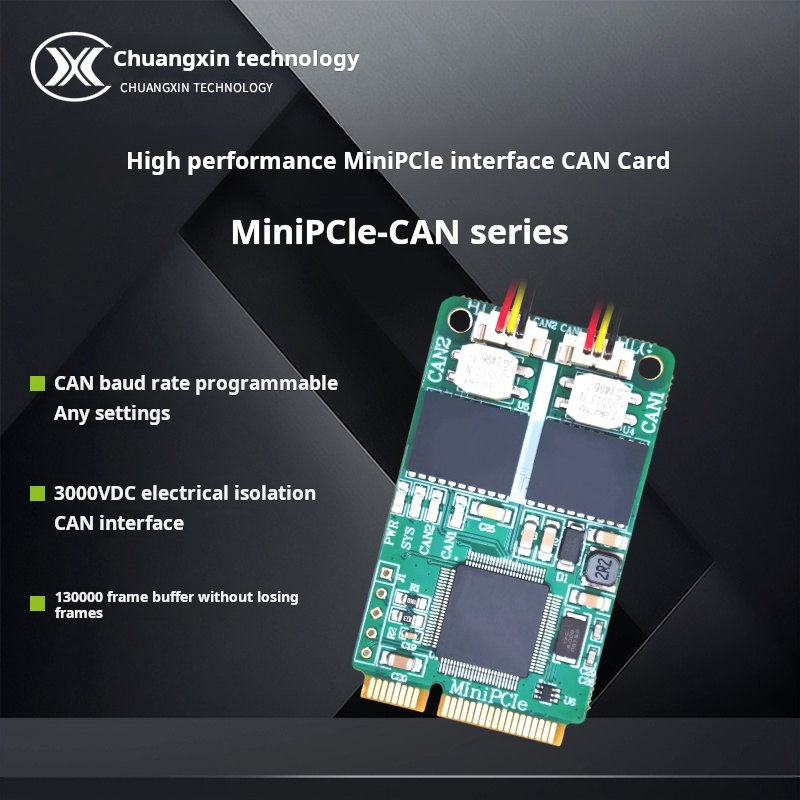

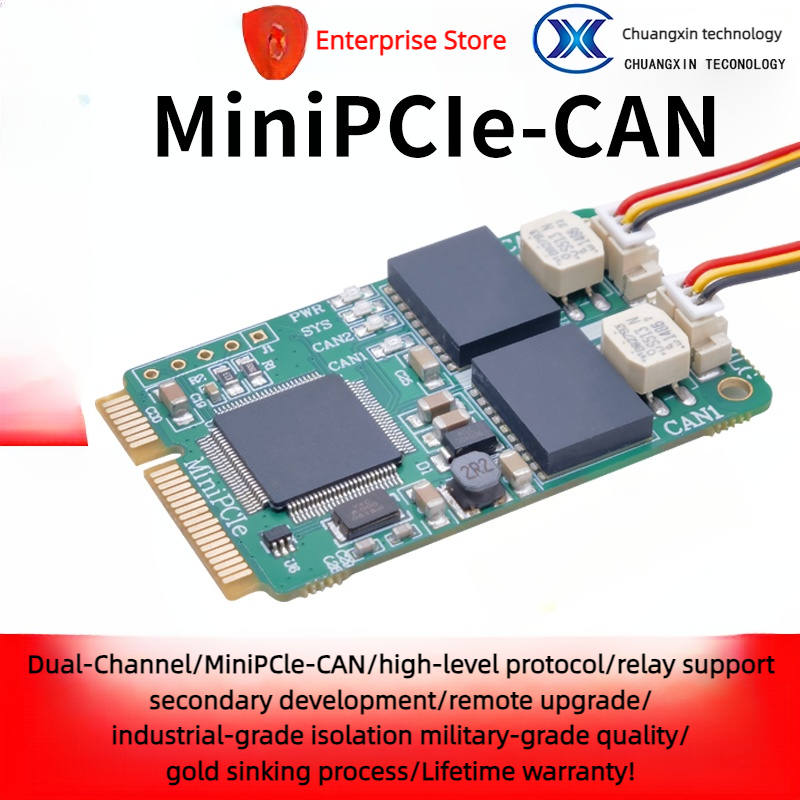

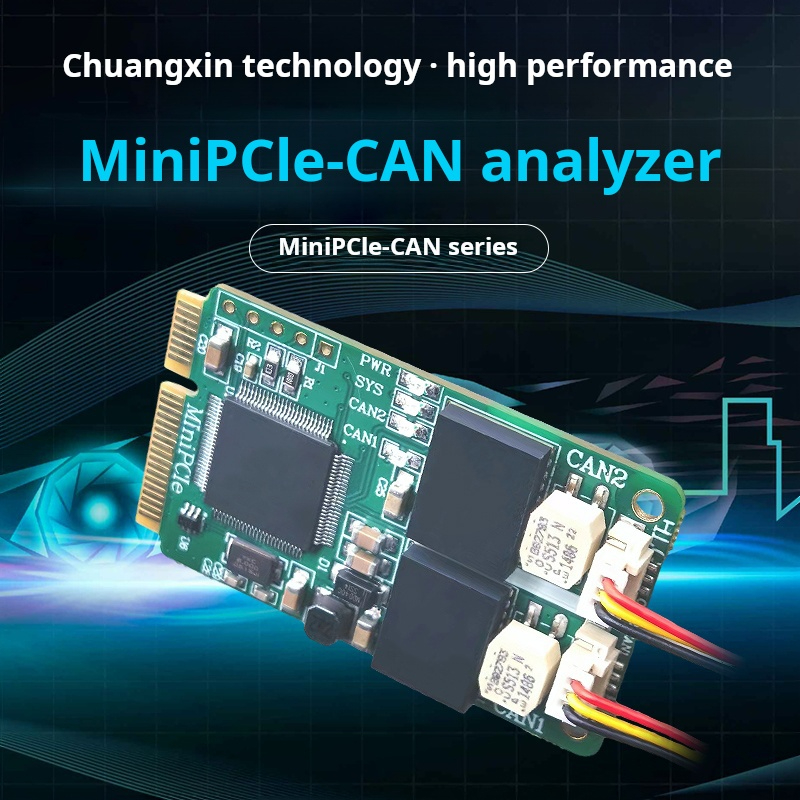

MiniPCIe-CAN

Price
399.00
产品详情
Number 08 Type MiniPCIe转CAN
Specification 标准 Brand 创芯科技

详情页2_01.jpg详情页2_02.jpg详情页2_03.jpg详情页2_04.jpg详情页2_05.jpg详情页2_06.jpg详情页2_07.jpg详情页2_08.jpg详情页2_09.jpg详情页2_10.jpg详情页2_11.jpg详情页2_12.jpg

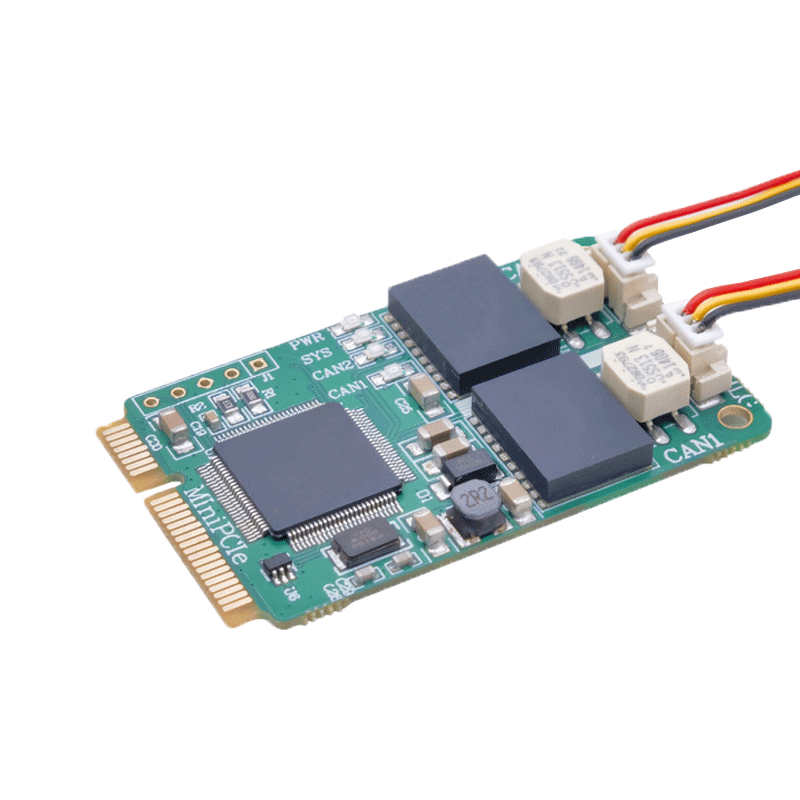

Model: MiniPCIe-CAN


Performance and Technical Specifications


  • USB to CAN bus Protocol Conversion;

  • 2 CAN Interfaces Equipped; Bi-directional transmission, CAN transmit and CAN receive Supported;

  • Supports CAN2.0A and CAN2.0B protocols, standard and extended frames, data frames and remote frames;

  • CAN controller baud rate selectable between 10Kbps-1Mbps and configurable via software;

  • CAN bus interface adopts high-speed magnetic coupling isolation, integrated isolated DC-DC power supply; three-terminal full isolation (PCI bus and CAN bus isolation, isolation between CAN1 and CAN2);

  • Support Relay Function, transparent transmission function, 2500V isolation between CAN1 and CAN2;

  • Traffic:Two CAN channels (when running at the same time) reach 8500 frames/s for receiving and 8500 frames/s for transmitting respectively; (two channels receive 8500 frames/s at the same time, and the PCI speed can reach a speed of 17000 frames/s without dropping frames)

  • PCI ExpressMini interface is directly powered without external power supply;

  • Passed 2500V isolation withstand voltage test;

  • Built-in conjugate coil (common mode inductor) to suppress common mode interference and improve anti-interference capability. ;

  • Supports ISO15765 protocol parsing, CANOpen, J1939, DeviceNet parsing, DBC parsing.

  • PC interface: 52Pin PCI ExpressMini slot;

  • CAN interface: 3Pin pitch 1.25mm card socket with its own adapter lead;

  • Termination Resistor: On-board 120 Ohm termination resistor, can be removed by yourself;

  • System: windows7/8/10 (32/64bit), Linux (32/64bit);

  • Operating temperature: -4085℃;

  • Case size: 30*51*3mm.

  • Product compatibility: function library compatible with Guangzhou Chou Li-gong Company ZLG-USBCAN interface adapter.



Complimentary Accessories and Shipping List:



1、MiniPCIe to CAN   Mainframe   a piece


2、CAN 3P Lead Line   Two pieces


3, MiniPCIe to USB Adapter Board   a piece


4, USB to the Motherboard Cable 4P   a piece





MiniPCIe End Interface Definition

Signal Name

Pin Number

Clarification

USB_D-

36

USB Signal Wire D-

USB_D+

38

USB Signal Wire D+

3.3V

252

3.3V Power Supply

GND

49182126272934354050

Ground

Note: Each 3.3V pin on the board requires only one connection for power supply, as does each GND pin.


CAN Terminal Interface Definition

CAN1


CAN2

GND

CANL

CANH

GND

CANL

CANH

Black

Yellow

Red

Black

Yellow

Red
